Tray Dryers

Product Details:

Minimum Order Quantity 1 Piece
Capacity 12 Trays
Max Temperature 150 Degree Celsius
Automatic Grade Semi-Automatic
Body Material Stainless Steel
Surface Treatment Painted

Features :
  • Industry approved design
  • Elevated performance
  • Operational fluency
  • Efficient
  • Longer life
  • Seamless finish

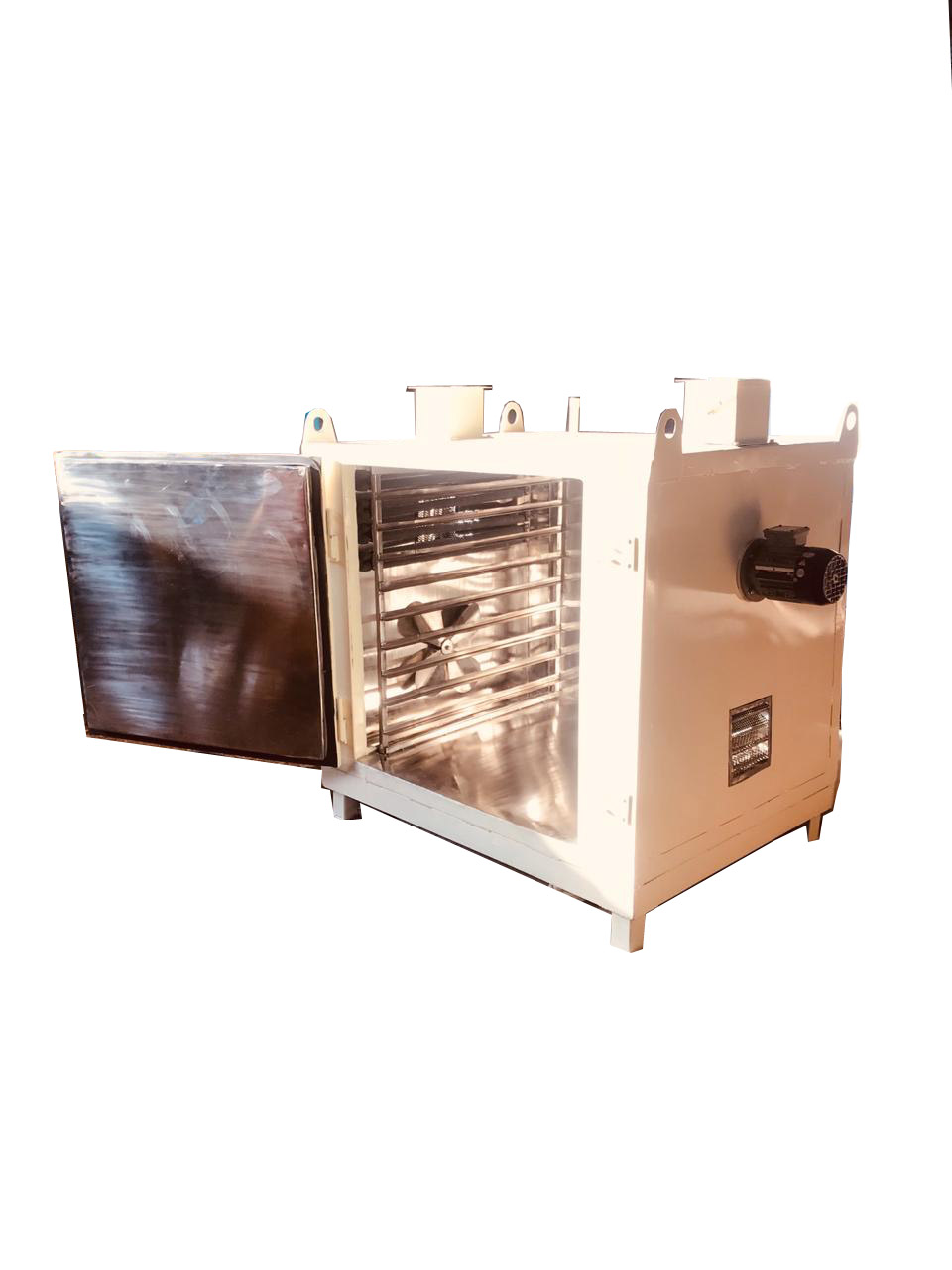

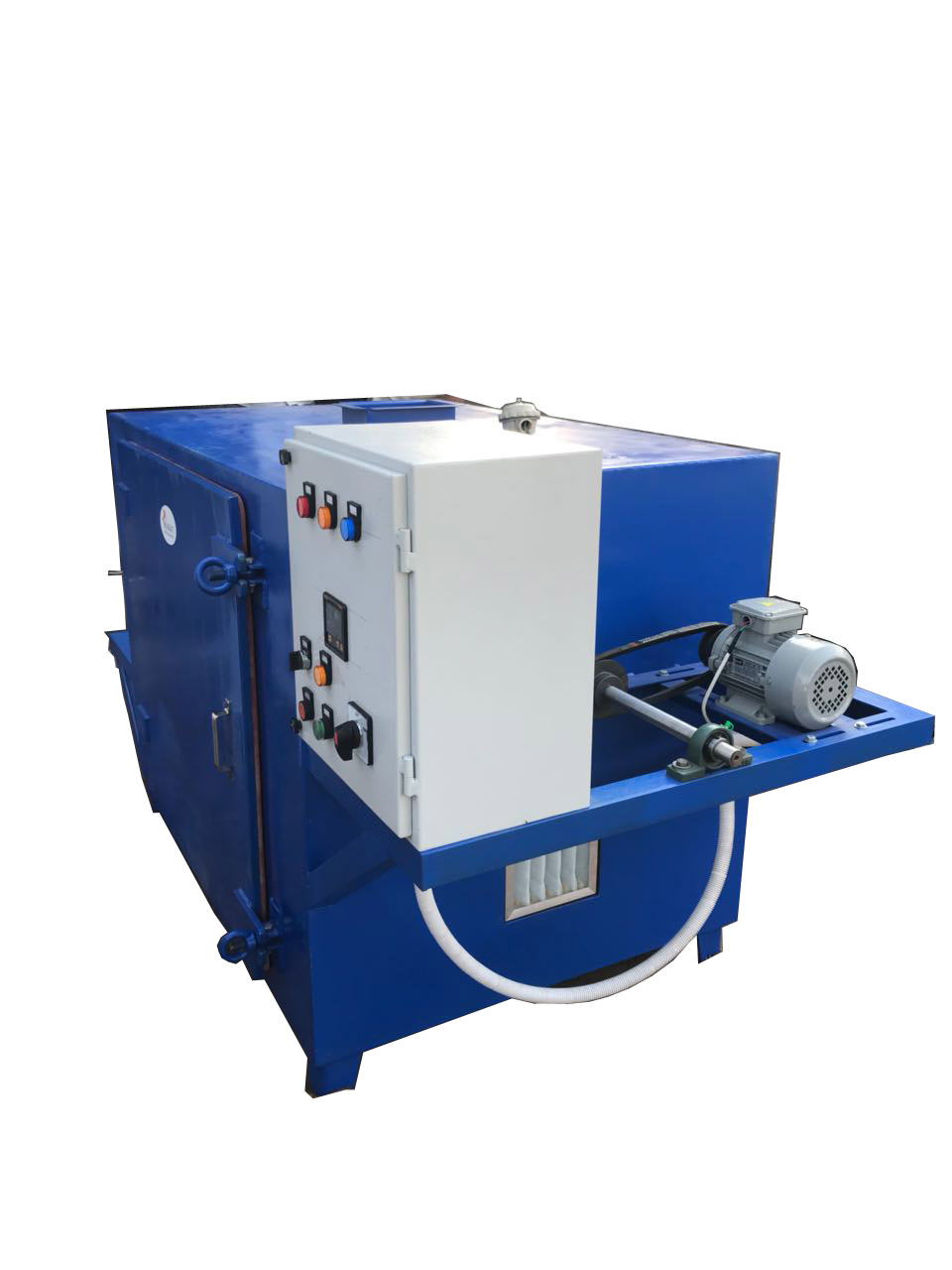

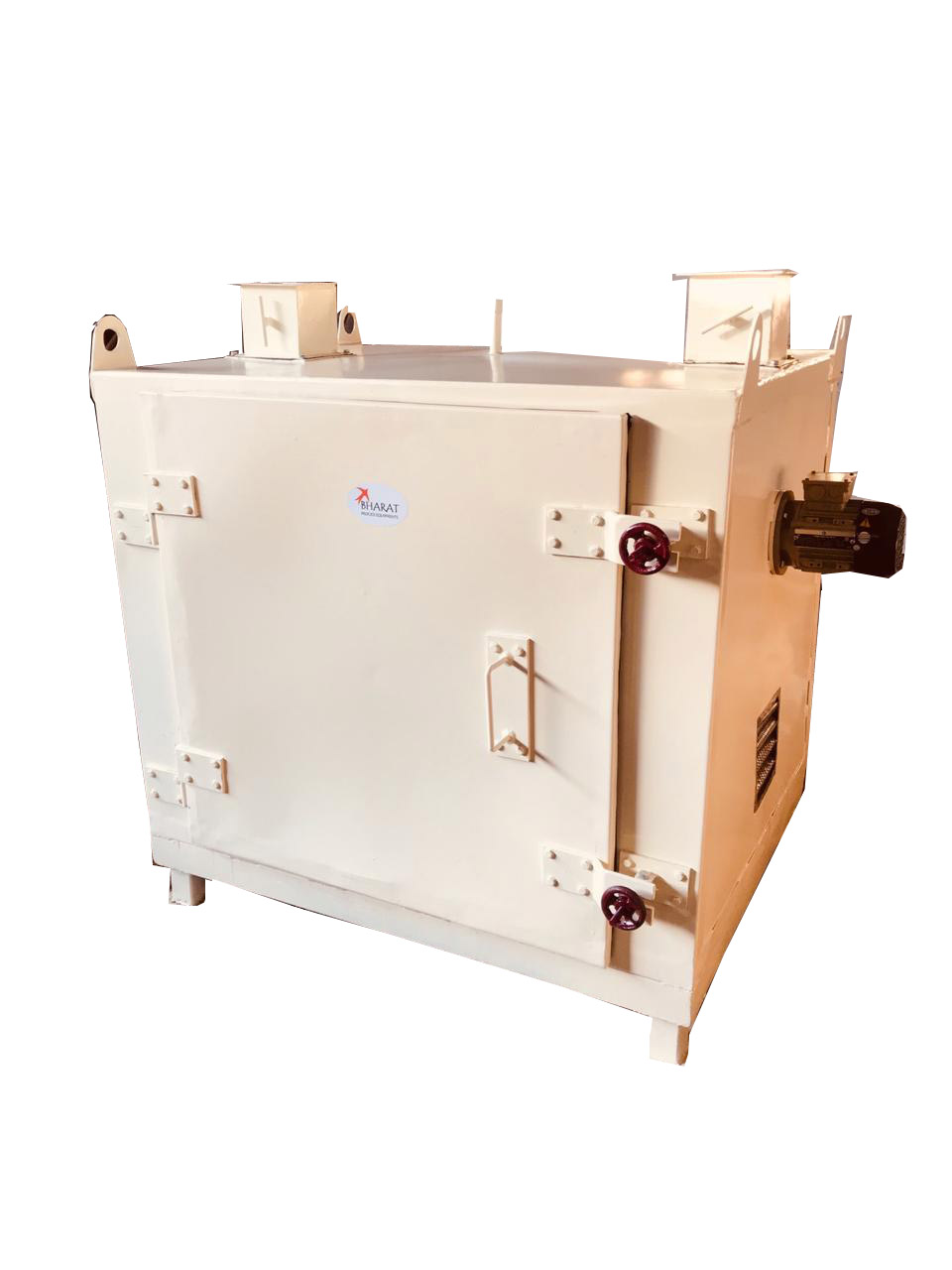

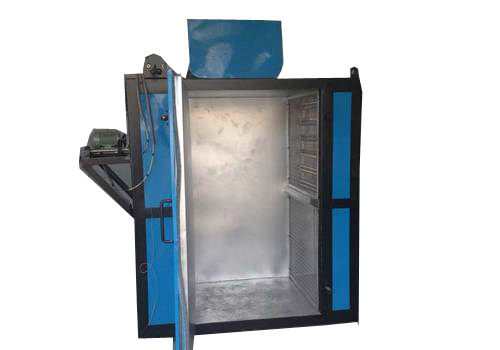

Atmospheric Tray Dryer is fabricated out of rigid angle iron frame with double walled panels insulated with best quality compressed fibre glass and with a rigid door fitted with strong hings and best chosen locking arrangement. A control panel is fixed in front of the oven to facilitate the operation easily. It has a large working space and is available, manufacturing from mild steel & in good finishing outside with synthetic enamel colour & inside painted with heat resistant paint to resist temperature up to 300 degree, in Standard Model.

Tray Dryers Description : The Drying ovens are normally available with choice of heating mode, as electrically heated / steam heated & thermic fluid heated. In electrically heated model, digital temperature controller provided with digital timer to facilitate working day and night. In steam & thermic fluid heated model, digital temperature indicator is provided with digital timer , but the temperature controller is not supplied with the machine.

Air Circulation : A highly effective recirculating air system is provided in the Tray Dryers. The heated air, is recirculated with fresh air in selected proportions for optimum drying. The system is designed so that the materials at the top & the bottom dry simultaneously. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuables of the oven which is suitably designed to cover wide temperature range, loading and unloading is faster and simple. In higher capacities trays trolley rolls in and out of the chamber. For continuous operation a spare trolley can be had for loading while the drying cycle is taking place. Controlled Temperature & Time: Digital temperature controller with digital timer are supplied in Tray Dryers to facilitate working day and night.

Additional Information :
  • Item Code : BATD
  • Pay Mode Terms : L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch : Nava Sheva Mumbai
  • Production Capacity : 100 Units/Month
  • Delivery Time : 4 Weeks
  • Packaging Details : Wooden Packaging
