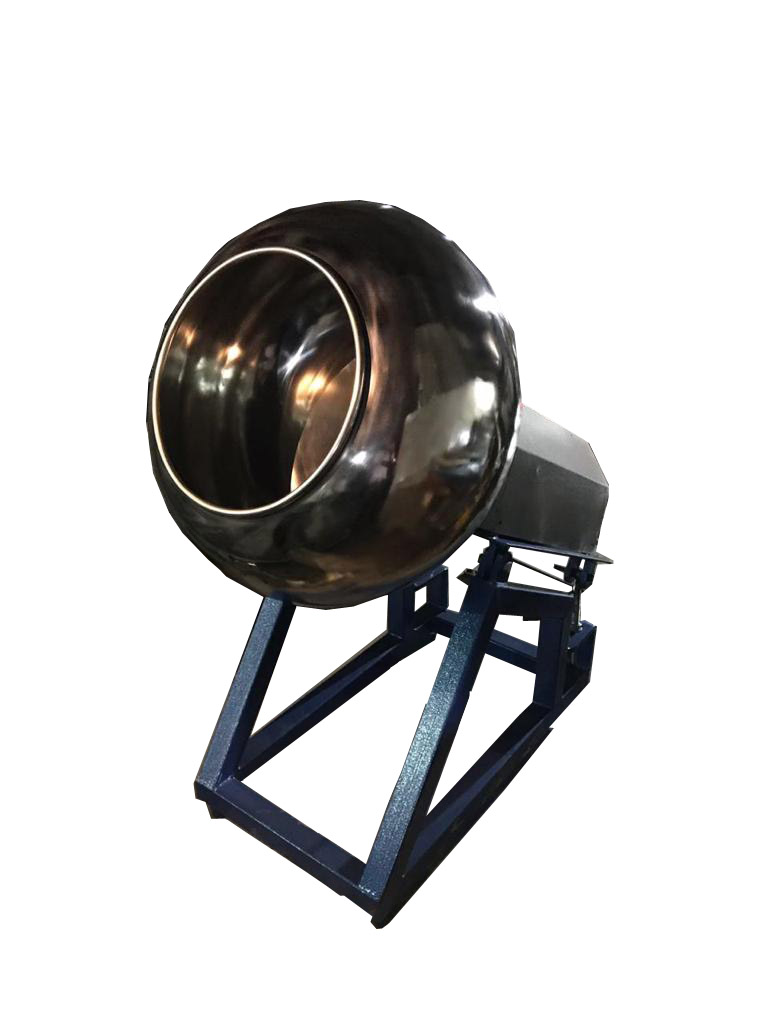

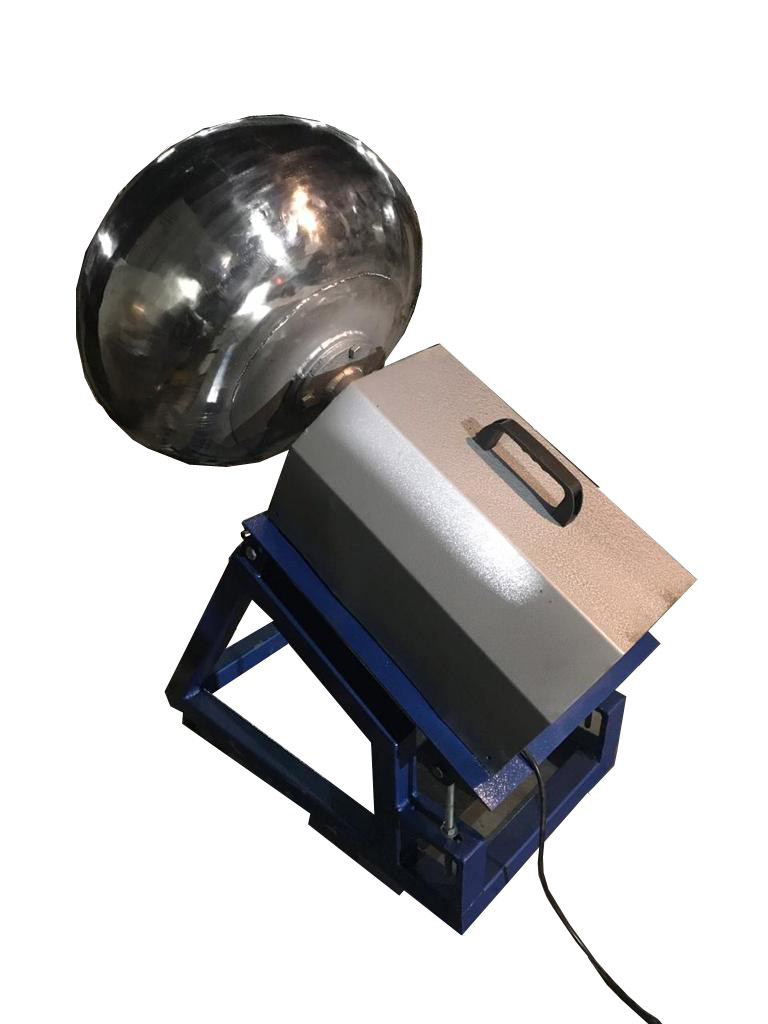

TECHNICAL SPECIFICATION FOR 48 INCH SS304-MS COATING PAN :
| DESCRIPTION |
PAN M.O.C: SS304/NON-CONTACT PARTS: MS |
| PAN SIZE |
48” (1200 MM) DIA |
| WORKING VOLUME |
200 LITERS (APPROX) |
| GROSS VOLUME |
500 LITERS (APPROX) |
| PAN THICKNESS |
2 MM THICK IN SS304 |
| DRIVE SHAFT DIAMETER |
50 MM IN MS |
| COATING PAN SUPPORT FRAME |
SQ.60 X 2 MM THICK PIPE IN MS |
| CHARGING PORT |
14 INCH |
| DRIVE SYSTEM |
GEARBOX + MOTOR |
| MOTOR |
2HP 4P 3PH 415V STD TEFC |
| GEARBOX |
STD MAKE |
| OUTPUT RPM |
30-45 RPM |
| CONTROL PANEL |
DOL STARTER |
| BODY COVER |
2 MM THICK IN MS |
| SURFACE FINISH |
MS PARTS: TWO COATS OF EPOXY PAINT |
