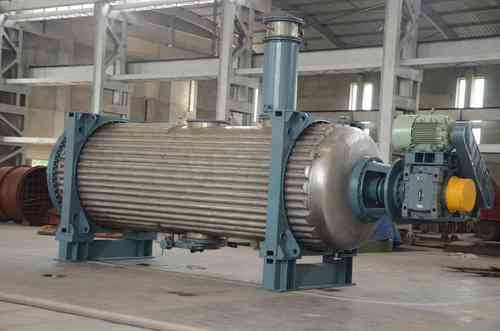

Rotary Vacuum Dryer also known as Vinesleuth Dryer, is a cylindrical jacketed vessel with a central agitator having specially designed blades. The blades of this Rotary Vacuum Paddle Dryer (RVPD) are so designed that they sweep the entire internal surface and at the same time turn the material so that all the particles are come in contact with the heated surface.
- The central agitator shaft is supported on the two end bearings housed in bearing housing in such a way that the alignment remains always intact. This central agitator is driven by means of a Motor & Gear box through the bull Gear. Cooling could also be provided by cold water / brine refrigerant through the jacket.
- The horizontal shell is jacketed to heat the shell with steam / hot water or any other thermal fluid. Limpet coil is provided instead of jacket if the heating media is fluid. A Dust Catcher consisting of bag filter is provided on the top to prevent the losses of material particles after the drying process. A Condenser of adequate heating surface area is provided wherein the evaporated vapors are condensed and these condensed vapors are then collected in the receiver of suitable capacity, placed beneath the condenser.
- A Vacuum Pump of adequate capacity is provided & fitted to the receiver of these rotary vacuum dryers to create the vacuum in the dryer shell through the Receiver, Condenser and Dust Catcher. Bharat Process Equipment (BPE) offers a wide range of capacities as per the requirement of customers.
